SECTIONING




SliceMaster by Jasco Sample Preparation Tools

precision cutting from 10-200µm



SliceMaster Micro Sample Preparation Tools are compact instruments that can easily cut thin sections from 10 to 200µm. These thinly sliced specimens may be viewed with a microscope. These instruments are simple to set-up for thin section preparation for specimens such as polypropylene bottles and multi-layer paper cartons. This product was originally designed for cutting specimens for FTIR analysis but is useful for many other applications.

The SliceMaster is available in three blade angles: vertical, angled and multi-angled. The TS-10 Pellet Slicer is for irregular sized pellets, seeds, caplets and tablets. All of the SliceMaster tools use double-edge or single edge razor blades.

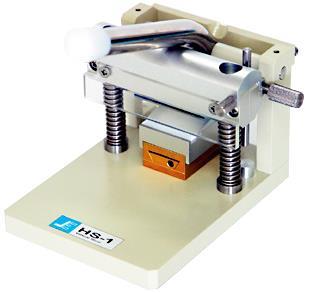

HS-1 Vertical Slicer

The HS-1 Vertical Slicer can vertically cut samples such as polypropylene bottles into 100 to 500µm sections, multi-layer paper cartons from 100 to 600µm sections, and PET samples from 150 to 400µm sections. Items such as polyester or other polymers can be sliced with a variable thickness of 100µm or greater.

1000µm Polypropylene Bottles
800µm Multi-layered Paper Cartons
600µm Polyethylene Tubes
400µm PET Bottles
200µm Polyester Cards
100µm Straws, Copy Paper, Polymide Sheets, etc.

Please contact us for price and ordering information




HK-1 Angled Slicer

The HK-1 Angled Slicer can cut samples at a 15° angle. It can cut samples of coated paper to 140µm, zip-lock bags to 100µm, hair to 80µm and snack food bags to 60µm.

200µm Polyester Cards
160µm Coated Paper
120µm Thick Bags for Tea or Zip Locks*
80µm Hair, Instant/Snack Food Bags*
40µm Polypropylene Cartons
10µm Polyvinyl Chloride and Polyvinylidene Chloride Wrappers, Polyethylene Bags, Aluminum Foil
*Polyethylene, Polypropylene, Polyester, Polyimide, Polyvinyl Alcohol, Polyvinyl Acetate, etc.



Please contact us for price and ordering information

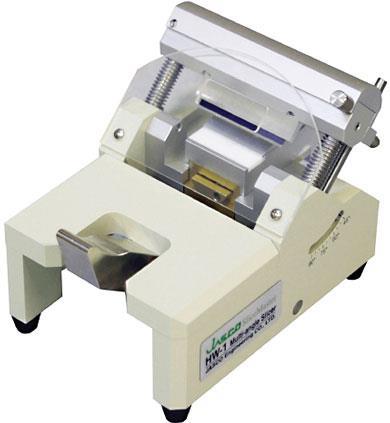

HW-1 Multi-Angle Slicer

The HW-1 Multi-Angle Slicer can cut samples at any angle from 45° to 90°. Various types of samples can be prepared with thin section thickness of 10 to 500µm, with the ability to select the desired sample thickness.



Please contact us for price and ordering information

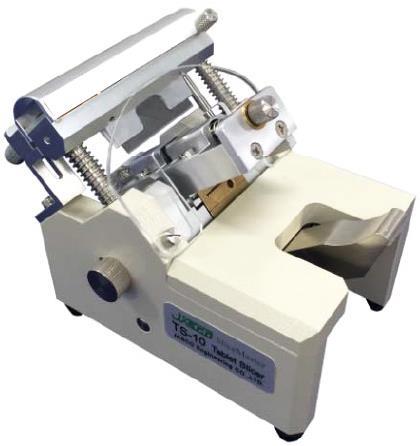

TS-10 Pellet Slicer

The TS-10 Pellet Slicer cuts at angles of 70° to 90° angles. The TS-10 Pellet Slicer used for cutting irregular sized pellets, seeds, caplets and tablets.





Please contact us for price and ordering information




SliceMaster Series Specifications Table

  HS-1 Vertical
Slicer

(#10187-V)
HK-1 Angled
Slicer
(#10187-A)
HW-1 Multi-
Angled Slicer
(#10187-M)
TS-1 Pellet
Slicer
(#10187-P)
Cutting Angle
(against surface)
90° 15° 45° to 90° Stepless Variable 70° to 90°
Sample Holder Removable Body Fixed Removable Removable
Sample Stage Feed Screw Type (500 µm/l rotation: stepless adjustable)
Maximum Thickness 3mm 0.2mm 2mm 10mm
Dimensions 85mm W × 150mm D × 110mm H 95mm W × 115mm D × 65mm H 85mm W × 115mm D × 95mm H 85mm W x 120mm D x 110mm H
Weight approx 730g approx 1100g approx 820g approx 1100g



Blade Angle and Cut-Off Example Table

Sample Name Sample Shape  Sample Size  Sample Cut Section Size  Blade Angle
Health Food A Round (Pellets) φ9.0mm 6.0mm 75°
Health Food B Triangle (Pellets) 9.0 x 8.0mm 4.0mm 76°
Pharmaceutical Pellets A
(Antibacterial)
Round (Pellets) φ10.0mm 4.0mm 77°
Pharmaceutical B
(Cold Medicine)
Football Shape (Couplet) 13.0 x 7.0mm 5.0mm 77°
Pharmaceutical C
(Stomach Medicine)
Round (Pellets) φ10.0mm 4.0mm 76°
Food A
(Mouth Freshener)
Spherical φ2.5mm 2.5mm 90°
Food B
(Freshener)
Round (Pellets) φ7.0mm 3.0mm 78°
Food C
(Lemon Candies)
Spherical φ4.0mm 4.0mm 90°
Food D
(Chocolate)
Spherical with Icing φ4.0mm 4.0mm 90°
Food E
(Tapioca)
Spherical φ2.5mm 2.5mm 90°
Grain A (Soba with Shells) Triangular Pyramid 7.0 x 4.0mm 4.0mm 90°
Grain B
(Wheat with Shells)
Oval 7.0 x 3.0mm 3.0mm 90°
Grain C
(Rice with Hulls)
Oval 8.0 x 3.0mm 2.0mm 90°
Industrial Products A
(O Ring)
Doughnut (Resin) φ9.0mm 1.0mm 90° (Using Liquid Nitrogen)
Industrial Products B
(Sealing Materials)
Doughnut (Resin) φ7.0mm 5.0mm 85°
Industrial Products C
(Pet Food)
Cylindrical 10.0 x 4.0mm 4.0mm 90°
