Motic® SMZ-168 Stereo Zoom Microscope

The SMZ-168 provides clear real 3-D imaging with a convenient zoom magnification range from 7.5 to 50x provided by the combination of the Greenough optical system and the standard 10x super widefield eyepieces. The long working distance of 113mm coupled to the large field of view for the standard configuration makes this an ideal system for setting up a work station for preparation, dissecting, micro-assembly, forensics or quality assurance. Features top light for incident illumination and a bottom light for transmitted illumination (streamline base). Both halogen and LED illumination are available. The optional trinocular port accepts an optional video C-mount and SLR camera adapters. Should you choose a Motic® or third-party camera, Motic® provides a range of C-mount adapters which are necessary for trinocular port attachment. See the Optical Specification Chart for other magnifications with use of optional auxiliary objectives and eyepieces. The SMZ-168 Series Stereo Microscope is available with a large variety of stands and many options to configure this versatile system to your exact requirements.

Optical System

Paired widefield eyepieces 10x / FN23 are 35° inclined with dual diopter adjustments. Interpupillary adjustment from 52 to 75mm. 60° inclination optional. Eyepiece tube diameter is 30mm
Viewing head rotates 360°, available with binocular or trinocular viewing head.
Greenough optical system with 6.7 zoom range: 0.75 to 5x (7.5x to 50x magnification with standard supplied lenses). Positive click stops at 7.5x, 10x, 20x, 30x, 40x and 50x. Achromatic color corrected parfocalled optical system provides sharp focused excellent 3-D image throughout the zoom range.
113mm working distance with standard lenses.
Total magnification range with optional lenses 1.1x-320x.

Halogen Illumination with Streamline Base Post Stand

Top light is 12V/10W halogen for incident illumination with adjustable beam and variable control.
Bottom light is 12V/10W halogen light which provides bright light for transmitted illumination. Cool fluorescent 12V/5W bottom illumination available as an option on FBGG large post stand.
4 position light control: top only/bottom only, top & bottom on/off.

LED Illumination with Streamline Base Post Stand

Top light is 3W LED for incident illumination with adjustable beam and variable control.
Bottom light is 3W LED light which provides bright light for transmitted illumination.
Transmitted illumination is an indirect illumination to avoid the hot spot problems of the other LED stands when used with a digital camera.
5500K Color Temperature
4 position light control: top only/bottom only, top & bottom on/off.

Focusing

Ergonomic dual focusing knobs, heavy-duty rack & pinion with slip-clutch to prevent damage to mechanism with tension adjustment to eliminate focus “drift”.
Focusing block fits 32mm diameter post and facilitates 76mm stereo heads
Working distance range with optional lenses 34.5 to 324mm.

Streamline Base Post Stand

Large Base Post Stand with built-in transformer for extra stability and space saving.
Auto-switch power supply for 110-240V, 50/60Hz.
Stage working surface approx. 200 x 200mm deep.
Includes two 95mm frosted glass and black/white contrast plates.
Locked on stage clips.

Dimensions and Weight

Streamline Base Stand depth: 280mm, stand width 330mm, overall height 450mm
Maximum specimen height 105mm
Net weight approx. 12kg

Complete Systems for the SMZ-168

2282-10 SMZ-168BP Binocular Stereo Zoom Microscope with plain base stand, 35° head, WF 10x (FN23) eyepieces

2282-11 SMZ-168BL Binocular Stereo Zoom Microscope with streamline base, including dual illumination, 35° head, WF 10x (FN23) eyepieces

2282-12 SMZ-168TP Trinocular Stereo Zoom Microscope with plain base stand, 35° head, WF 10x (FN23) eyepieces

2282-14 SMZ-168TL Trinocular Stereo Zoom Microscope with streamline base, including dual illumination, 35° head, WF 10x (FN23) eyepieces

2282-15 SMZ-168BN LED Binocular Stereo Zoom Microscope with streamline base, including Dual LED illumination, 35° head, WF 10x(FN23) eyepieces.

2282-16 SMZ-168TN LED Trinocular Stereo Zoom Microscope with streamline base, including Dual LED illumination, 35° head, WF 10x(FN23) eyepieces.

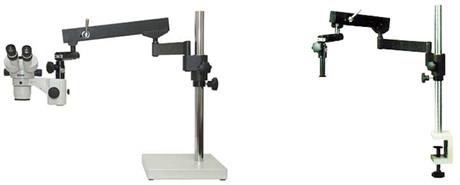

Motic® SMZ-168 with Articulating Arm Boom Stand

#2282-17, #2282-18 with Square Base, #2282-19, #2282-20 with Clamping Base

Motic® SMZ-168 with Articulating Arm Boom Stand

All the benefits of the Greenough 3-D optical system of the SMZ-168 mounted on the popular #2279-214 Articulating Boom Stand with Square Base. Excellent configuration for dissection, small animal surgery, inspection and sample preparation.

Complete system includes: SMZ-168 Head, Head Holder and Articulating Boom Stand with Square Base (#2282-17 or #2282-18) or NEW Clamping Base (#2282-19 or #2282-20). Available with Binocular or Trinocular Head.
