Microscopy Illuminators


The Motic® MLC-150C Cold Light Source can be used for many applications where a bright light illumination is needed. It is particularly useful for illumination when using stereo microscopes and digital imaging devices. The unit comprises a sturdy construction, practical design, minimal working noise, user friendly controls, switching power supply and a filter assembly. The unit comes standard with a remote control which can be conveniently placed beside the microscope stand

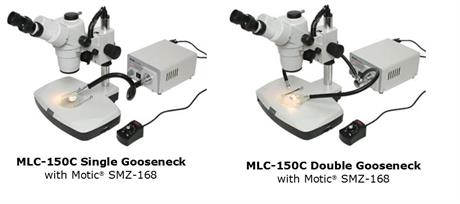

For microscopy illumination there is a choice of single or double goose neck fiber optics illuminator with a hard tube which can be bent to give optimum illumination conditions. There is also a ring light illuminator with flexible fiber optics available, optimized to fit on the Motic® SMZ-168 or K-series stereo microscopes.

An LED indicator on the front of the unit indicates the temperature of the light source from 2500 to 3200K. If the optional blue filter is used a value of 500K must be added to the displayed value.

Specifications
Internal illuminator 21V/150W EKE Halogen Lamp, Working life 200H
Illumination output >120,000 Lux
Color Temperature Output 2500 - 3200°K (no filter)
5000K max with filter
Temperature 0 - 45°C
Input rating 200W, 115/230 VAC ±15% 50/60Hz
Output rating 3-21V DC ±10% (working voltage), 7A max
Size of power supply 220 x 193 x 112mm W x L x H
(7.9" W x 7.6" L x 4.4" H)
Weight 3 kg (6.6 lb)

Motic® MLC-150C Microscope Cold Light Source
