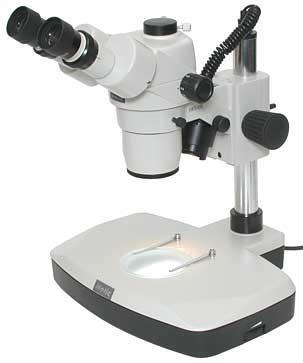

The DM-143C Digital Stereo Microscope provides clear, unreversed 3-dimensional images sharply focused over the entire 10x-40x magnification range. The large and stable streamline base post stand features incident and transmitted halogen illumination with an auto switch transformer in the base plate. See Optical Specification Chart for other magnifications with the use of optional auxiliary objective lenses.

This microscope incorporates an easy to use, fully integrated digital camera (see description below). The stereo zoom microscope is fully functional and may be used independent of the integrated camera. The DM-143C presents exceptional value and  ease of operation.  The complete unit includes a high quality stereo zoom microscope, a heavy duty stand, dual illumination and a versatile integrated video CMOS camera.

Optical System

• Widefield eyepieces 10x / FN20 with dual diopter adjustments and 45° inclination. Interpupillary adjustment from 54 to 78mm. Viewing head rotates 360°.
• Magnification zoom range from 10x-40x with standard supplied lenses. Positive click stops at 10x, 20x, 30x and 40x. Achromatic color corrected parfocal optical system.
• 79mm working distance with standard lenses.
• Total magnification range with optional lenses 2.5x-180x.

Focusing

• Ergonomic dual focusing knobs, heavy-duty rack & pinion with slip-clutch to prevent damage to mechanism. Tension adjustment eliminates focus “drift”.
• Working distance range with optional lenses 33-133mm.

Streamline Base Post Stand

• Large Base Post Stand, with built-in transformer for extra stability and space saving.
• Auto-switch power supply for 110-240V, 50/60Hz.
• Stage working surface approximately 200 x 200mm deep (7.87 x 7.87").
• Includes two 95mm frosted glass and black/white contrast plates.
• Locked on stage clips.

Illumination with Streamline Base Post Stand

• Top light is 12V/10W halogen for incident illumination with adjustable beam and variable control, includes blue filter.
• Bottom light is 12V/10W halogen light which provides bright light for transmitted illumination.
• 4 position light control: top only / bottom only / both on / both off.

Digital Camera

1/2", 3.0 megapixel (2048 x 1536) CMOS Digital Camera

• USB 2.0 port for digital signal.
• Full Motic® Images Plus 2.0 ML, documentation, measuring and archiving.

Dimensions

• Streamline Base Post Stand (FBGG), depth: 280mm, stand width 330mm, overall height 450mm.
• Maximum specimen height 105mm.
