The future of microwave tissue processing is here...

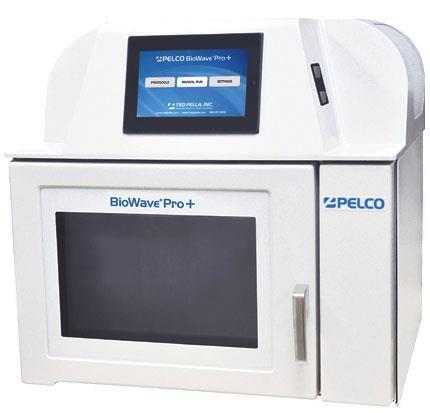

The new design of the PELCO BioWave® Pro+ introduces features that improve efficiency and streamline functionality. It is built on trusted technology and adds enhancements for efficient laboratory processing. This new tissue processor further enhances processing of tissue for diagnostic and research TEM, immunofluorescence and confocal specimen processing.

The PELCO BioWave® Pro+ meets the current needs of the modern laboratory with up-to-date technology. Clickable text navigation allows for simple and clear screen interaction. Live run-time graphs provide an easily accessible view of the current protocol in real-time. The simplified protocol selection screen allows one-touch access to loaded and custom protocols.




Art# 36700-230 PELCO BioWave® Pro+ Microwave Processing System, 230VAC.

Includes: Temperature Probe and Stand, Stir Bar Kit, Exhaust Connector and Tubing, Hoses with Quick Disconnect Fittings, Safety Instructions and Manual

Contact us for a quote





User-Friendly Run Screens

Intuitive functions in a simple, consistent format offer all setting controls within one screen.

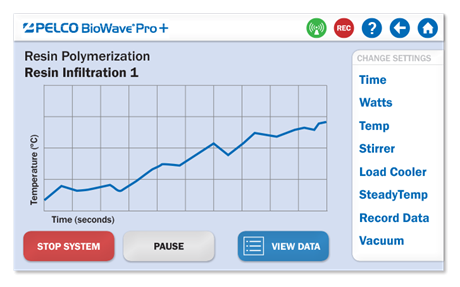

Live Run-Time Graph

Quick and convenient view of the current protocol in real-time provides an active view of run progress.

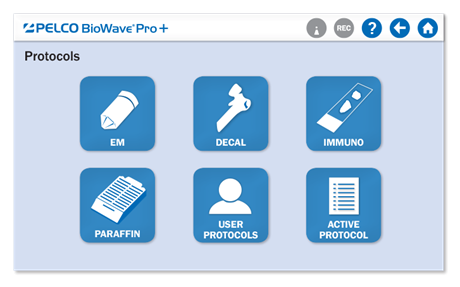

Simplified Protocol Selection

Icon-driven interface allows users one-touch access to pre-loaded and customized protocols.

Two USB ports and the NEW Report/Protocol Manager (RPM) app
simplify data transfer and custom protocol upload.


The PELCO BioWave® Pro+ fits nicely into a core facility or multi-user environment by providing options to users for data manipulation. Each user is able to create a folder for their protocols and recorded data on the PELCO BioWave® Pro+ directly or may choose to keep their data and protocols on a USB key.

The new PELCO BioWave® Pro+ Report/Protocol Manager app facilitates data transfer and review, as well as custom protocol creation and upload.

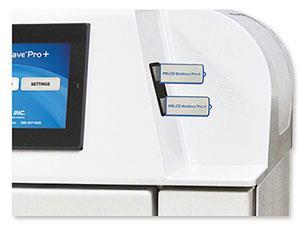

Two USB Ports

The PELCO BioWave® Pro+ now has two USB ports for convenient data transfer of protocols and recorded run information.

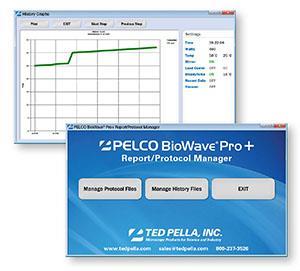

PELCO BioWave® Pro+ RPM App

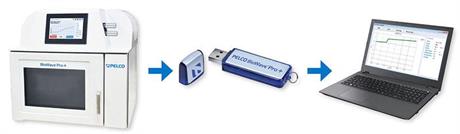

The Report/Protocol Manager (RPM) app is designed to meet diagnostic laboratory regulations on reviewing recorded data for each protocol. Recorded data can be downloaded to the USB key and then transferred into the RPM app on a laboratory computer.

The RPM app also provides an improved design for protocol creation and review. The completed protocol can be saved to the USB key and then imported to the PELCO BioWave® Pro+ directly from the touchscreen.




PELCO BioWave® Pro+ Specifications



Dimensions 553mm x 514mm x 546mm (21.75" W x 20.25" D x 21.5" H)
Weight 37kg (83lb)
Microwave Power Range Continuous power from 100 - 750 watts
Microwave Frequency 2.45 Ghz
User Interface 7" Touchscreen
Temperature Probe ±1°C
Magnetic Stirrer Integrated, 0 - 3000rpm speed
Exhaust 110 cfm capacity
Vacuum System 20" Hg, 3 modes
Certification

ETL/CE

Power 36700: 120V, 15amp, 60Hz dedicated circuit
36700-230: 230V, 10amp, 50Hz dedicated circuit



Available Application Kits



Electron Microscopy

This kit provides a full range  of accessories designed for
efficient EM processing in the microwave, enabling
complete process from fixation to resin.

Learn more

Immunolabeling

The versatility of this kit equips the user for multiple types of staining protocols.
All accessories are compatible  with immunohistochemistry
and immunofluorescence stains and reagents.

Learn more

Paraffin Tissue Processing

All the accessories needed for complete paraffin processing are included
in this kit. Vacuum-assisted infiltration, along with microwave energy, enhances
any standard protocol.

Learn more

Decalcification

The unique components of this  kit provide a true advantage to  the decalcification process.
Microwave technology provides notable savings of time and reagent, offsetting decalcification's most significant limitations.

Learn more
