Tissue Casettes

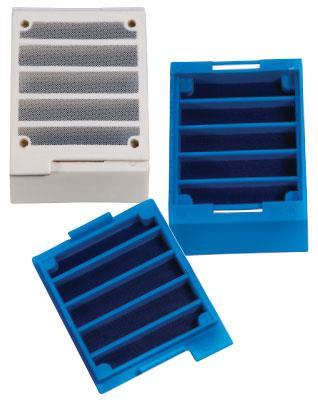

CellSafe™ 5 Five Chamber Biopsy Cassettes

  • Small needle core tissue specimens may be processed separately
  • Ideal for breast and prostate core biopsies
  • 200 x 200 micron nylon mesh screen top and bottom
  • X-ray transparent fine mesh
  • Available in white and blue

The CellSafe™ is designed to contain small tissue fragments and biopsies during tissue processing. The CellSafe™ 5 was developed for the simultaneous preparation of core biopsies, ideal for breast and prostate specimens. Each well is numbered for identification. The blue cassette aids contrast and visualization of light colored biopsies, normally experienced with breast tissue.
The acetyl resin frame and nylon mesh are suitable for use in common tissue processing reagents including Formaldehyde solutions, Bouin's Fluid, Alcohol solutions, Xylene, Chloroform, Citrus based clearing agents and Paraffin wax (melting point up to 65°C). If you are using any unusual reagents it is suggested that you carry out preliminary chemical compatibility tests before using the CellSafe™ 5 to contain tissue samples.

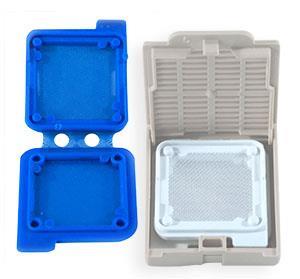

CellSafe™ + Biopsy Capsules v2

The CellSafe™ + Biopsy Capsule is designed to contain small tissue fragments and biopsies during tissue processing. The blue CellSafe™ + Biopsy Capsule makes it easier to see small pieces of tissue contrasting with the blue mesh screen. The CellSafe™ + Biopsy Capsule with a hinged cover fits into a regular cassette. Top and bottom consist of extra fine nylon mesh, 200 x 200 micron mesh screen, preventing small tissues from getting lost during specimen preparation, keeping them safe. The plastic frame and nylon mesh are suitable for use in common tissue processing reagents including formaldehyde solutions, Bouin's fluid, alcohol solutions, xylene, chloroform, citrus-based clearing agents and paraffin wax (melting point up to 65°C). The plastic frame is made from the same material widely used in the manufacture of plastic processing cassettes. If you are using any unusual reagents it is suggested that you carry out preliminary chemical compatibility tests before using the CellSafe™ + Biopsy Capsule to contain tissue samples. The CellSafe™ + Biopsy Capsule is designed for single use only.

Interior dimensions of a regular cassette are: 30 x 26 x 4.92mm H.
Exterior dimensions of the CellSafe™ + Biopsy Capsule are: 27.5 x 25 x 4.57mm H.

Histosette I® Tissue Cassettes II

Tissue Processing Cassettes, but with a 30° angle. Sold in dispenser boxes of 500 or cases of 1500.




Histosette I® Biopsy Cassettes

Specially designed for biopsy specimens during the embedding process. 0.9mm square openings to maximize fluid exchange and insure proper drainage. Not suitable for automated printers. 30° angle. Sold in dispenser boxes of 500.




Histosette II® Tissue Cassettes

Integral lid, large writing area, 45° angle. Suitable for certain types of cassette labeling instruments. Sold in dispenser boxes of 500.




Histosette II® Biopsy Cassettes

Integral lid, large writing area, 45° angle. Suitable for certain types of cassette labeling instruments. Sold in dispenser boxes of 500.

1mm square openings to maximize fluid exchange and to insure proper drainage




PELCO® Tissue Cassettes

Tissue processing cassettes with a large 45° writing area and efficient flow-through slots. Lids and bases are separate. Sold in boxes of 500 (lids and bases).






PELCO® Biopsy Cassettes

made of acetal polymer

Similar to 27164 series but specially designed to hold biopsy specimens during the embedding process, as well as in a storage cabinet. Large 45° writing area and efficient flow-through slots. 1mm square openings to maximize fluid exchange and to insure proper drainage. Lids and bases are separate. Sold in boxes of 500 (lids and bases).




Unisette™ Tissue Cassettes

Tissue Processing / Embedding Cassette with Cover
made of acetal polymer
Cassettes keep specimen safely submerged in liquid. Efficient flow-through slots. Snap-latch and hinge-lock design prevent early separation of base and lid and allows for one hand operation. Large labeling area on two sides of cassette. Anterior writing area is at 35° angle. Sold in dispenser boxes of 500.

Pore size: 1mm square pores
Outside dimensions: 28.5 x 41 x 6.7mm (1.12" x 1.61" x 0.26")
Inside dimensions: 26 x 30 x 5mm (1.02" x 1.18" x 0.2")




Unisette™ Biopsy Cassettes

Specially made for biopsies.

Similar to Unisette™ Tissue Cassettes. Made of acetal polymer with 1mm openings assure maximum fluid exchange. Sold in dispenser boxes of 500.

Available in 7 non-cytotoxic, non-metallic colors.

Outside dimensions: 28.5 x 41 x 6.7mm (1.12" x 1.61" x 0.26")
Inside dimensions: 26 x 30 x 5mm (1.02" x 1.18" x 0.2")




Slimsette™ Tissue and Biopsy Cassettes

made of acetal resin polymer

The Slimsette™ Cassettes, a new generation in the Simport Tissue and Biopsy Cassette family. These cassettes are more compact and efficient than previous cassettes. They feature a unique recessed cover allowing more cassettes to be stacked in automated cassette labeling machines and increasing the number of cassettes that may be stored in storage cabinets.

Slimsette™ Cassettes are molded from high density acetal resin polymer allowing them to sink rapidly. Acetyl resin polymer is compatible for use with histological reagents and solvents. The covers may be opened and closed repeatedly and always relock securely without specimen loss. The front labeling area has a 45° angle.

Slimsette™ Biopsy Cassettes

A biopsy processing and embedding cassette designed to securely hold biopsy specimens.

  • 0.8mm pore size
  • 45° angle labeling/writing surface
  • Recessed covers, pre-assembled on cassettes

Sold in dispenser boxes of 500 (1 case = 3 boxes) and in a case of 10 pre-filled sleeves of 75 cassettes for Thermo MicroWriter™ and PrintMate automated cassette labelers.

Slimsette™ Tissue Cassettes

A tissue processing and embedding cassette designed to securely hold tissue specimens.

  • 114 slot openings each measuring 1 x 5mm
  • Chamber depth of 4mm
  • 45° angle labeling/writing surface
  • Recessed covers, pre-assembled on cassettes

Sold in dispenser boxes of 500 (1 case = 3 boxes) and in a case of 10 pre-filled sleeves of 75 cassettes for Thermo MicroWriter™ and PrintMate automated cassette labelers.

Slimsette™ Four Chamber Tissue Cassettes

A tissue processing and embedding cassette designed to securely hold tissue specimens.

  • 114 slot openings each measuring 1 x 5mm
  • 4 square compartments, each 13mm
  • Chamber depth of 4mm
  • 45° angle labeling/writing surface
  • Recessed covers, pre-assembled on cassettes

Sold in dispenser boxes of 500 (1 case = 3 boxes). Will work in cassette labelers that print to a 45° print surface.

Micromesh™ Biopsy Cassettes, One Compartment

with covers assembled .Cassettes have 1676 square openings of 0.38mm allowing for greatly improved fluid exchange without having to use biopsy pads. Large anterior and posterior slots in both cassette and cover ensure that the Micromesh™ cassette will sink rapidly. A large square compartment, 27mm, is perfect even for needle biopsies. The cover does not protrude above the cassette, a great space-saving feature allowing more cassettes to be stacked in automatic labeling machines and tissue processors. 45° angle writing area. Covers are pre-installed on cassettes. Sold in dispenser boxes of 250 or cases of 1000.



Micromesh™ Biopsy Cassettes, Four Compartments

Similar to # 27150. Compartments measure 13mm, cover and base have about 1676 openings of 0.38mm maximizing fluid exchange. 45° labelling area. Sold in dispenser boxes of 250 or cases of 1000.
.

Microsette I® Biopsy Cassettes

Biopsy Processing/Embedding Cassettes (with covers assembled)
made of polypropylene



Cassette has 6 distinct compartments 7 x 12mm, numbered from 1-6. No biopsy pads necessary. Cover and base have over 3000 square openings of 0.26mm, 170 holes per compartment to maximize fluid exchange and proper draining.

Tissue Cassette Bases

made of acetal polymer (unless otherwise noted) for use with metal cover

Disposable plastic tissue cassette bases are suitable for holding and identifying tissue samples in processing, embedding and sectioning procedures. The cassettes fit securely in microtome chuck adapters. They are molded from a high density polymer that is totally resistant to the chemical action of histological solvents. The slanted writing surface accepts writing easily, permitting sample identification throughout all stages of embedding and long afterwards when archived. They are available in several colors. These cassettes are made to accept standard metal lids, Product No. 27167. Sold in dispenser boxes of 500 or cases of 1500.

Macrosette® Processing/Embedding Cassettes with Covers

made of acetal polymer

Disposable cassette especially designed to hold larger specimens with a maximum thickness of 10mm during embedding and storage. 40.1 x 28.5 x 13mm H (1.58" x 1.12" x 0.51" H). Sold in dispenser boxes of 250. Covers assembled.

MACROSETTE W/COV,WHITE,PKG/250

Macrosette® Processing/Embedding Cassettes, white

DISPO BASE MOLD,37X24X10,BX500

Disposable Base Molds, 37 x 24 x 10mm

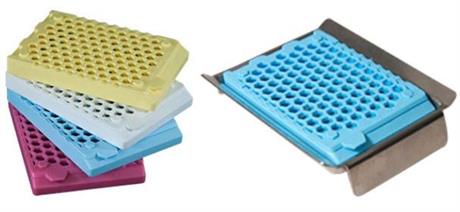

Super Mega Hex Cassette

made of acetal polymer

Extra-large processing/embedding cassettes with covers. Disposable cassette designed to hold larger specimens with a maximum thickness of 12mm. Ideal for prostate, brain, breast tissue and eyes. Extremely useful for research and toxicology laboratories.  The new “Hex” pores hold the large tissue specimens to the cassette much more securely than traditional slot design.Inside dimensions: 64 x 49 x 13mm (2.52" x 1.89" x 0.51")
Outside dimensions: 75 x 52 x 17mm (2.95" x 2.05" x 0.71")

Use with 27197, 27197-1 and 27197-2 Super Mega Cassette Stainless Steel Base Molds

Super Mega Mothership Cassette

made of acetal polymer

With an internal cavity a third of the depth of the conventional Super Mega, the Super Mega Mother Ship provides an innovative solution for the processing and embedding of large tissue specimens.

Using this cassette helps meet recommendations for HER2 testing in the UK and ASCO/CAP in the USA. By reducing specimen thickness (5mm or less), processing time is shortened while ensuring high quality tissue processing.

The Super Mega Mother Ship cassette uses an innovative permanent docking bay for a standard tissue processing cassette printed with ID barcodes and/or test information. This enables the specimen to be entered onto a LIMS guaranteeing its accurate and reliable tracking. 100 printable cassettes are provided with each box of 100 Super Mega Mothership Cassettes. Casting can be done in 30 minutes at -8°C. Available in 7 colors.

Inside dimensions: 64 x 50 x 5mm (2.52 x 1.89 x 0.51")
Outside dimensions: 75 x 52 x 17mm (2.95 x 2.05 x 0.71")

Use with 27197-4 Super Mega Stainless Steel Base Mold

Super Mega Hex Slim Cassette

made of acetal polymer

Extra-large processing/embedding cassettes with covers. Disposable cassette designed to hold larger specimens with a maximum thickness of 5mm. Ideal for prostate, brain, breast tissue and eyes. Extremely useful for research and toxicology laboratories. Optimal for large specimens grossed at 5mm thickness for improved fixation and tissue processing.

Inside dimensions: 64 x 50 x 5mm (2.52" x 1.89" x 0.51")
Outside dimensions: 75 x 52 x 7mm (2.95" x 2.05" x 0.71")

Use with 27197-3 Super Mega Cassette Stainless Steel Base Mold

Use 27199 Spacer Bar with Super Mega Hex Slim Cassettes in combination with 27198 for sectioning
