PELCO® SEM Pin Stub Vacuum Desiccator

  • Art no: 16179
  • Weight: 0
  • Qty: st

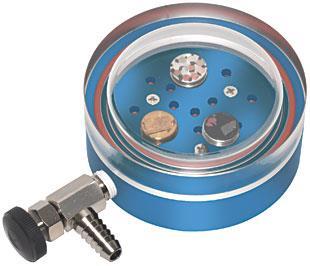

PELCO® SEM Pin Stub Vacuum Desiccator

The durable and versatile PELCO® SEM Pin Stub Vacuum Desiccator holds up to 12 standard ø12.7mm (1/2") pin stubs, or two ø25mm (1") or 1 up to ø50mm (2") SEM pin stubs. Storage under vacuum eliminates contamination or dust. Allows for a 10mm (3/8") specimen height on the pin stubs. The use of durable, non-outgassing, blue anodized aluminum and Silicon O-rings makes it suitable for pumping down to 10-3 mbar. Capable of holding vacuum for many weeks. Metal vacuum valve with PTFE shaft seal. Use a small vacuum pump to evacuate. Vacuum connection for pump-down is a 1/4" (6.35mm) barb fitting.

  • Keeps samples and calibration standards contamination free
  • Prevents oxidization of sensitive samples
  • Holds pin mounts secure with O-rings
  • Acrylic clear disc for easy locating of samples
  • Ideal for storing, transporting and shipping samples and calibration standards

Overall size w/o vacuum valve is ø76 x 35mm (3" x 1.4"). Cavity height is 13.7mm (0.54").
